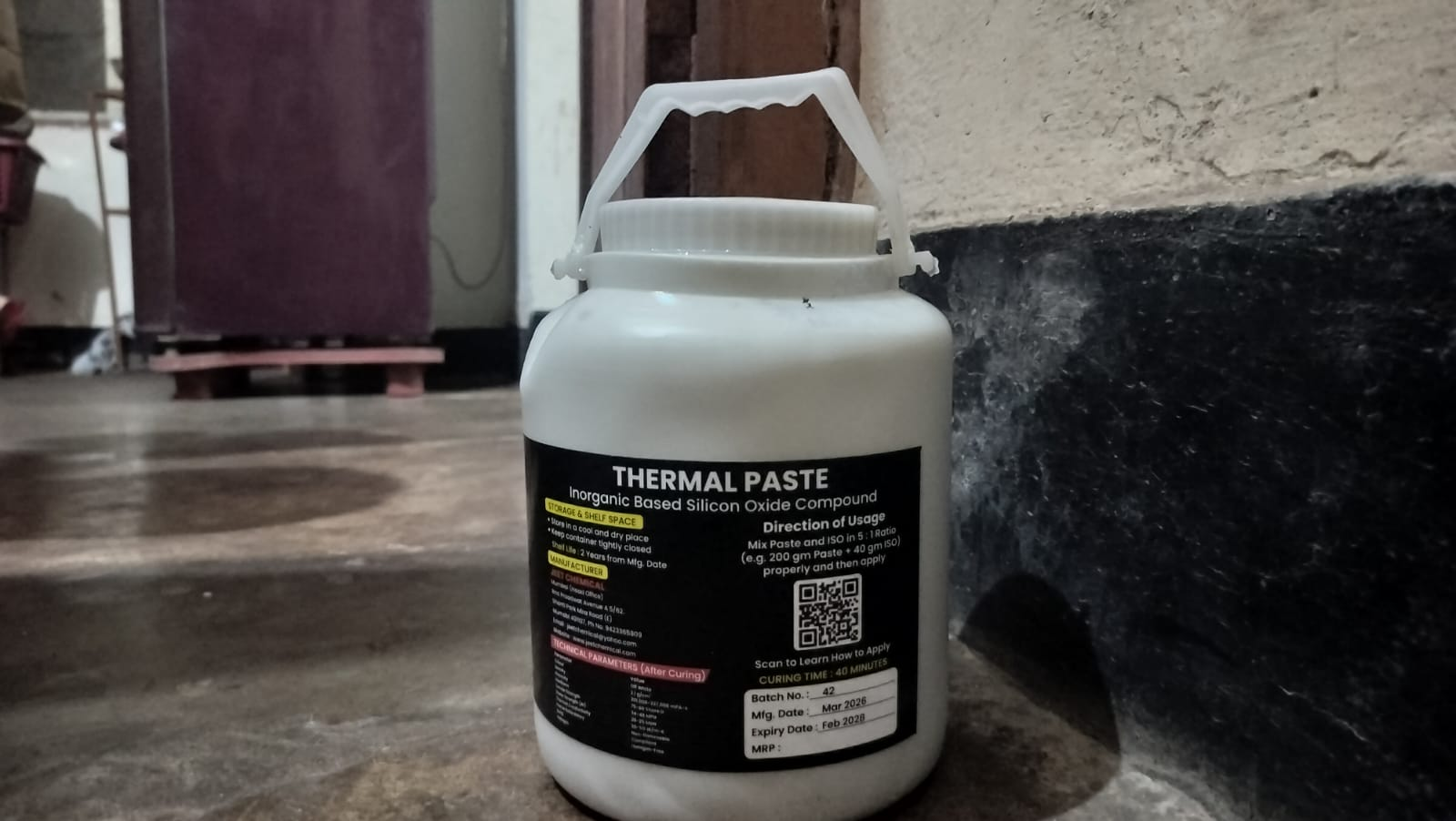

Thermal Conductive Paste.
A two-part inorganic thixotropic sealing compound built for heat transfer. Mix 5:1, trowel a 1–2 mm layer between copper pipe and surface — gels in ~10 min, cures in 25–30 min at room temperature, then survives −80 °C to +150 °C without melting.
Specifications
Technical sheet
- Type
- Two-part inorganic thixotropic sealing compound
- Constituents
- Oxides, isocyanate, silica gel, additives
- Colour
- Off-white (paste) + black (hardener)
- Mix ratio (by weight)
- 5 : 1 (paste : hardener)
- Mix ratio (by volume)
- 1 kg paste : 150 g hardener
- Specific gravity
- 1.41 ± 0.05 g/cc
- Viscosity @ 25 °C
- 32,000–36,000 cps
- Gel time
- ~10 minutes
- Curing time
- 25–30 minutes (room temp)
- Service temperature
- −80 °C to +150 °C
- Cracking temperature
- 250 °C
- Compressive strength
- 650–1000 kg/cm²
- Lap shear strength
- 800–1000 kg/cm²
- pH
- 13
- Coverage
- 1 m @ 6 mm bead · 10 m @ 20 mm bead
- Oxidation / acid resistance
- Excellent (except hydrofluoric)
- Salt spray (ASTM B-117)
- No red rust after 96 hrs
- Compliance
- RoHS
- Shelf life
- 12 months (sealed, 5–30 °C)
- Pack sizes
- Up to 75 kg
Tested in defreezer cooling test and furnace hardness test. Salt-spray verified by Indiana Test, Calibration & Certification Services (TC-5982).
Application steps
Six steps, one technician
- 1
Prepare
All surfaces must be free of oil, dust and surface coatings. A light abrasion improves mechanical key.
- 2
Stir
Stir the paste container to overcome any ingredient settlement during storage.
- 3
Mix
Combine paste and hardener at 5:1 by weight (e.g. 200 g paste + 30 g hardener) until uniform.
- 4
Load & Apply
Load into an empty silicone cartridge and gun out — or trowel a 1–2 mm layer covering the full contact surface.
- 5
Seat
Press the components together so every surface is fully wetted. Gel in ~10 minutes.
- 6
Cure
Hardens by air-drying and operational heat. Full cure in 25–30 minutes at room temperature.
If moisture is present after mixing, foam may form — add moisture powder or contact our representatives. Curing time can be tuned to customer preference.
Watch the application video on your phone.
Point your camera at the QR code to watch a step-by-step demo of mixing the paste in 5:1 ratio, troweling a 1–2 mm layer, and seating the copper coolant pipe against the defreezer wall.
Gel time: ~10 minutes · Full cure in 25–30 minutes at room temperature.
